Junction Valve Rear Hand Brake Kit

Item# 550083965
$395.95
Model:  Year:  Brake Line Color:  Brake Line Fitting Color:  This item is currently out of stock!


Product Description

OUT OF STOCK DUE TO MAGURA 13MM BACK ORDER. ETA MID SEPTEMBER 2022

Junction Valve Rear Hand Brake Kit:

This is the simplest and most cost effective way to get your handbrake setup up and running. This is a single caliper kit that does not require any additional calipers.

This kit comes complete with 3 components.

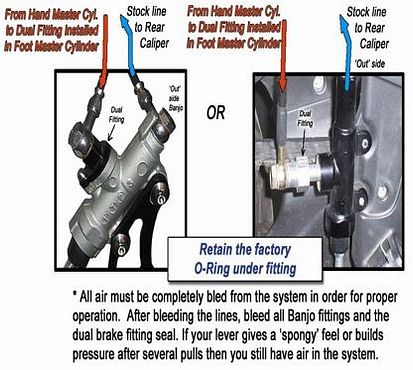

-Junction Valve: This billet fitting inserts into your rear master cylinder. It comes in the form of either a tear-drop style, or cir-clip style depending on your model. The pictures should give you a good idea of where the fittngs insert into the rear master cylinder. This fittings allows you to operate the handbrake or footbrake.

ATTN for Yamaha models, the 2003-2005 R6 (also 06+ R6S) and 2004-2006 R1 and FZ models require a stock foot master cylinder from an earlier model. Your stock foot master cylinder is not compatible with either of these fittings. An R6 (99-02) for example, accepts our tear-drop fitting so you can swap out your stock foot master cylinder with that one. 2007 and newer model R1 and also FZ07 models require a bracket/relocation tab to be fabricated for proper fit.

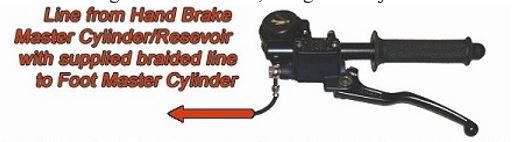

-Spiegler Stainless Brake Line: The 56" stainless line runs from the junction valve to the hand brake master on the bar. Spiegler brake lines are made in USA and offer a lifetime guarantee. This is all we run at The Stunt Factory.

-Master Cylinder: We use the Magura HC1 13mm Master Cylinder for this kit and our riders love it. This radial master offers a slightly softer feel than other radial masters with proven braking power gains. Includes: Brake Fluid Reservoir, 5 Crush Washers, & Sticker. The all new Magura HC1 13mm master Cylinder is one of the #1 masters for Stunt Riders and Supermoto riders. MAGURA is the brand quality that pays for itself.

Please Note: Junction valves are kept in stock and ship within 24-48 hours. Magura Master Cylinders with Stunt Brake Lines ship seperately but also within 24-48 hours.

*Don't see your model listed? Email us and we'll verify which fitting your model accepts. Info@TheStuntFactory.com

Available for:

Honda - Grom MSX125, 250R, F2, F3, F4, F4i, 600RR, 929RR, 954RR, 1000RR

Kawasaki - Z125, Ninja 300, ZX6R 636, ZX6RR, 650, 650R, ZX7R, ZX9R, ZX10R, Z1000, ZX14R

Suzuki - DRZ 400SM, GSXR 600, SV650, GSXR 750, SV1000, GSXR 1000, GSXR 1300 Hayabusa

Triumph - 675 Speed Triple R, 675 Speed Triple, 675 Daytona R, 675 Daytona, 1050 Speed Triple

Yamaha - R3, YZF 600R, R6, R6S, R6R, R1, WR250, WR450
